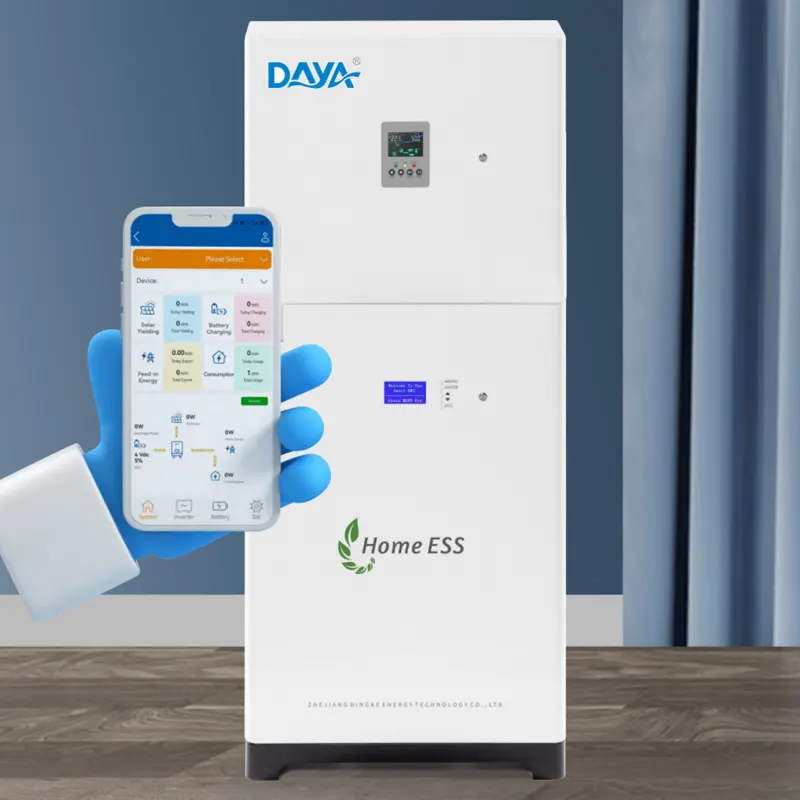

L-Ess Vertical Lithium Battery Energy Storage System is a type of energy storage system designed to store energy from renewable energy sources such as solar panels or wind turbines. It is composed of a vertical stack of lithium-ion batteries that can be configured to meet different power and energy storage requirements.
The L-Ess system provides a high energy density, meaning it can store a large amount of energy in a small footprint. It is also modular, which means it can be easily expanded or reduced to meet changing energy storage needs. The system is designed for use in residential, commercial, and industrial applications, and can be easily integrated with existing solar or wind power systems.
The L-Ess system also features advanced battery management technology, which ensures longer battery life and better performance. This technology optimizes the charge and discharge cycles of the batteries, ensuring that they are always charged to the optimal level for maximum efficiency.
Overall, the L-Ess Vertical Lithium Battery Energy Storage System is an efficient and reliable solution for storing energy from renewable sources and reducing reliance on traditional electricity sources.
The L-Ess Vertical Lithium Battery Energy Storage System has many applications in a variety of settings. Here are a few examples:
Residential Energy Storage: The L-Ess can be used in homes that have solar panels installed. During daylight hours, excess energy generated by the solar panels can be stored in the L-Ess, and then used to power the home in the evening or during periods of low solar generation.
Commercial Energy Storage: Commercial buildings with high energy demands, such as hospitals or data centers, can use the L-Ess to offset peak energy usage and reduce their reliance on grid power. This can result in significant cost savings over time.
Industrial Energy Storage: The L-Ess can be used in industrial settings to store energy generated by wind turbines or other renewable energy sources. This energy can then be used to power equipment or to support the overall energy needs of the facility.
Emergency Power Backup: The L-Ess can be used as a backup power source during power outages or other emergencies. This is especially useful for critical infrastructure like hospitals, police stations, and fire departments.
Overall, the L-Ess Vertical Lithium Battery Energy Storage System has a range of applications, making it a versatile and efficient energy storage choice for many different settings.
Model |
L-ESS- 10 |
L-ESS- 15 |
L-ESS-20 |
Capacity |
10.24KWh/5KW |
15.36KWh/5KW |
20.48KWh/5KW |
Standard discharge current |
50A |
50A |
50A |
Max.discharge current |
100A |
100A |
100A |
Working voltage range |
43.2- 57.6VDC |
43.2- 57.6VDC |
43.2- 57.6VDC |
Standard Voltage |
51.2VDC |
51.2VDC |
51.2VDC |
Max. charging current |
50A |
50A |
50A |
Max. charging voltage |
57.6V |
57.6V |
57.6V |
Rated PV input voltage |
360VDC |
||
MPPT tracking voltage range |
120V-450V |
||
Max input voltage (VOC) at lowest temperature |
500V |
||
Max input power |
6000W |
||
Number of MPPT tracking paths |
1Path |
||
DC input voltage range |
42-60VDC |
||
Rated mains power input voltage |
220VAC/230VAC/240VAC |
||
Grid power input voltage range |
170VAC~280VAC (UPS mode) / 120VAC~280VAC (Inverter mode) |
||
Grid input frequency range |
45Hz~ 55Hz (50Hz); 55Hz~65Hz (60Hz) |
||
Inverter output efficiency |
94%( MAX) |
||
Inverter output voltage |
220VAC±2%/230VAC±2%/240VAC±2%( Inverter mode) |
||
Inverter output frequency |
50Hz±0 . 5 or 60Hz±0 .5( Inverter mode) |
||
Inverter output waveform |
Pure sine wave |
||
Grid output efficiency |
>99% |
||
Max mains charging current |
60A |
||
Max PV charging current |
100A |
||
Max charging current (Grid+PV) |
100A |
||
Optional mode |
Grid priority/PV priority/Battery priority |
||
Warranty |
5~ 10Years |
||
Communication |
Optional :RS485/RS232/CAN WiFi/4G/Bluetooth |
*Voltage, capacity, size/color customization, OEM/ODM services can be provided according to customer needs
